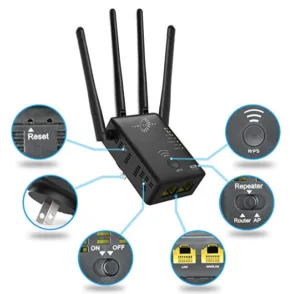

In this article, we’ll study VICTONY AC1200 Extender Setup via all the ways. First, we’ll study Victony dual-band wireless AC1200 extender; it’s with 4 external antennas that you simply can bet for getting exceptional Wi-Fi range throughout your homes or offices. With effortless Setup and installation, you’ll start getting the web through it within minutes. It’s compatible with most routers available within the market with IEEE802.11a/ac/n/g/b standards. It’s plug and play with WPS supported its setup won’t takes more than 5 seconds. It supports three modes” Router/Repeater/Access Point”, which you’ll change consistent with your need. One thing you’ve got to recollect is though that while switching the modes you’ll need to reset and configure it again. Let’s start the Victony AC1200 extender setup-
Victonty WA1200 Range extender setup via browser
- Firstly, you have to locate the extender midway between your router and the dead zone.
- Then confirm that you must be at least getting 50% of the signals from your router to the extender here.
- Now, switch on the Victony AC1200 extender and toggle the switch it to “repeater/extender mode”.
- Hold on for moments until the power LED turns to solid green.
- Once you have done, acquire any of your devices like phone/tablet/laptop go to Wi-Fi setting and connect to the Victonywifi network name. It will pop up as Victony_extedner or wireless-N.
- Then initially it’ll show you as an open network so on password are going to be needed while connecting to that.
- Once you are done connecting it will show “no internet”.
- Now launch the browser on your device and type 192.168.10.1 enter username and password as “admin”. All lower case.
- Then select the network and name that network you want to expand and type its password to confirm it.
- After applying all setting it will reboot for like 60 seconds and then you can connect your devices.
Now connect your devices to the Victony AC1200 repeater network, which will pop up as (SSID_EXT) in your Wi-Fi list.
Configure AC1200 Victony extender via WPS
- Firstly, for occurrence Victony AC1200 extender setup via WPS you need to plug router and repeater in the same room.
- Then hold on for a moment to power LED turn to stable on AC1200, and then press the WPS button on it and hold the WPS on your configured router for 2 seconds.
- Now wait until LED light will blink on both the devices and Light will stop within 15-20 seconds and confirms successful setup.
- Once, the WPS LED on the Victony wa1200 repeater will turn to solid green.
Note:If not then reset the extender and try it again.
- Then you can unplug the extender and locate it where you wish like within the range of the router.
- It will pop up as your SSID_EXT in list and password will be same as your router’s Wi-Fi password.
Victony AC1200 setup as an Access Point
No doubt the speed in access point mode is quicker than range extender mode. If you’re okay with using 20-30 feet along Ethernet cable or if you’ve got Ethernet cable wiring installed in your walls then it’ll be best choice for you. Before we start the method confirm you toogle the turn on the devices to Access Point mode.
Let’s start wa1200 setup as Access Point.
Firstly, plugin your AC1200 where you want it to use.
- Then connect an Ethernet cable starting from LAN port of your repeater to the LAN port on your router.
- Now connect your device like phone/laptop/tablet to Victony extender and you will see the name in your Wi-Fi list.
- Once you done with connecting the device, launch browser on the same devices and in the address bar enter 192.168.10.1.
- This process will take you to the Victony AC1200 extender setup page. Now you will see the login pageenter username and password as “admin” there. All lower case.
- After you done with the credentials then, in setup wizard select “access point” and enterNext.
- Now it will approach you to create a new SSID, security type and password for your Access Point.
- Once done it will reboot automatically and you can to connect your devices to the newly created network.
Note:Since this extender supports dual Ethernet port so you’ll be ready to connect your devices via Ethernet to the AC1200 repeater.
Install Victony AC1200 as a router
Victony AC1200 work wonders. All three in one mode is sort of impressive features available during this. Now a number of us travel tons and connecting to open network sometimes create trouble since it’ll be an open network. Confirm you’ve got switched the button to “Router Mode” on the device. So you’ll create a replacement network with the assistance of this device and make a passcode also.
So, let’sstudy the Victony wa1200 setup as router.
- First, for this you would like to attach the web cable coming from ISP or modem into the WAN port of Victony AC1200
- Then connect your device (laptop/phones etc.)with Victony network. Or you can use the second option connecting it by Ethernet cable from LAN port on Ac1200 to your computer.
- Now For Victony login launch browser and in the address bar enter 192.168.10.1 login. On setup page enter “admin” for username and password.
- Once you done with logging in then select “router mode” in setup wizard and select ISP type.
- Now follow the on-screen instruction and then your Victony AC1200 router will reboot.
- When the reboot process finished then you will be able to connect your devices with it.
You are successfully installing Victony AC1200 as a router.
